Arduino UNO vs Nano: Which Board Should You Choose?
Share
Choose an UNO R3-style board when you want a roomy starting point for learning and following tutorials. Choose a classic Nano-style board when a compact breadboard layout matters more. Before buying either, check the exact board version, connector and whether its header pins are already soldered.
This guide compares the UNO R3 and classic Nano families. It does not cover UNO R4, Nano ESP32 or other newer boards with different hardware.
UNO vs Nano: the practical differences

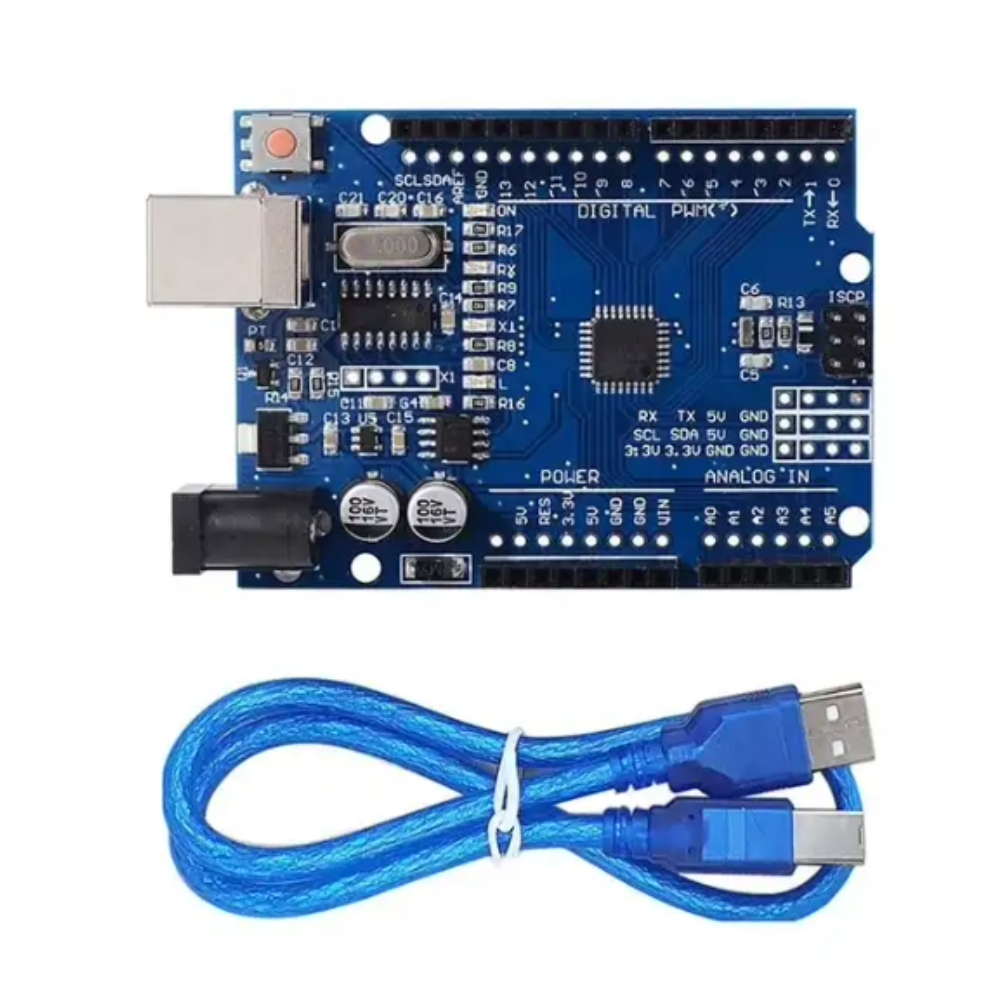

The official UNO R3 uses an ATmega328P, provides 14 digital input/output pins and six analogue inputs, and has a USB connection and dedicated power jack. Its larger layout is convenient when identifying connections during a first project. See Arduino’s UNO R3 documentation for the reference pinout and specifications.
The classic Nano uses a smaller, breadboard-friendly layout and has no dedicated barrel power jack. The official classic board has a Mini-B USB connector. Compatible boards can use different connectors and USB interface chips, so the reference design is not a guarantee of every seller’s specification. See Arduino’s classic Nano documentation.
| Your priority | What to look for |
|---|---|
| Following a first tutorial | The exact board named in the tutorial; an UNO R3-style board is a useful starting option. |
| Fitting a compact prototype | A Nano-style board, with its actual dimensions and connector clearance checked. |
| Using an existing UNO shield | Matching UNO header layout, voltage and shield compatibility. |
| Avoiding soldering | A board with fitted headers, rather than loose unsoldered pins. |
Choose around the project you want to finish
For a first build, write down what you want it to do: read one sensor, respond to a button or control an indicator. Then choose a tutorial and make its parts list your starting point. Buying a different board simply because it is smaller can add avoidable wiring and setup decisions.
For a build that will eventually fit inside a case, sketch the whole assembly before choosing a board. Leave space for the USB plug, cable bend, connectors and mounting. The board alone is only part of the footprint. A paper rectangle cut to the listed dimensions is a useful first fit check.
Four checks before ordering
- Read the complete product name. “UNO” or “Nano” alone does not identify every hardware detail.
- Check the connector. Choose a matching data-capable USB cable and check what the listing includes.
- Check the headers. Maisonup’s CH340 / ATmega328P Nano-compatible board is listed with unsoldered pins. Plan for header assembly if you need plug-in connections.
- Check the complete parts list. A board purchase is not automatically a project kit. List the sensors, connecting wires, breadboard and other required components separately.
The UNO-compatible DIP ATmega328P board is another option in Maisonup’s range. These listings describe compatible boards; they should not be confused with Arduino-manufactured originals.
Common questions
Is the smaller board always the better choice?
No. Ease of wiring, the tutorial you are following and the connectors you need can matter more than size. Choose for the task rather than the smallest footprint.
Can I assume every Nano has the same specifications?
No. Nano is a family name, and compatible boards also vary. Match the complete model and its documentation before connecting accessories.
What should I buy first?
Start with one clearly defined project and its checked parts list. Browse electronics and DIY components once you know what that build needs.
