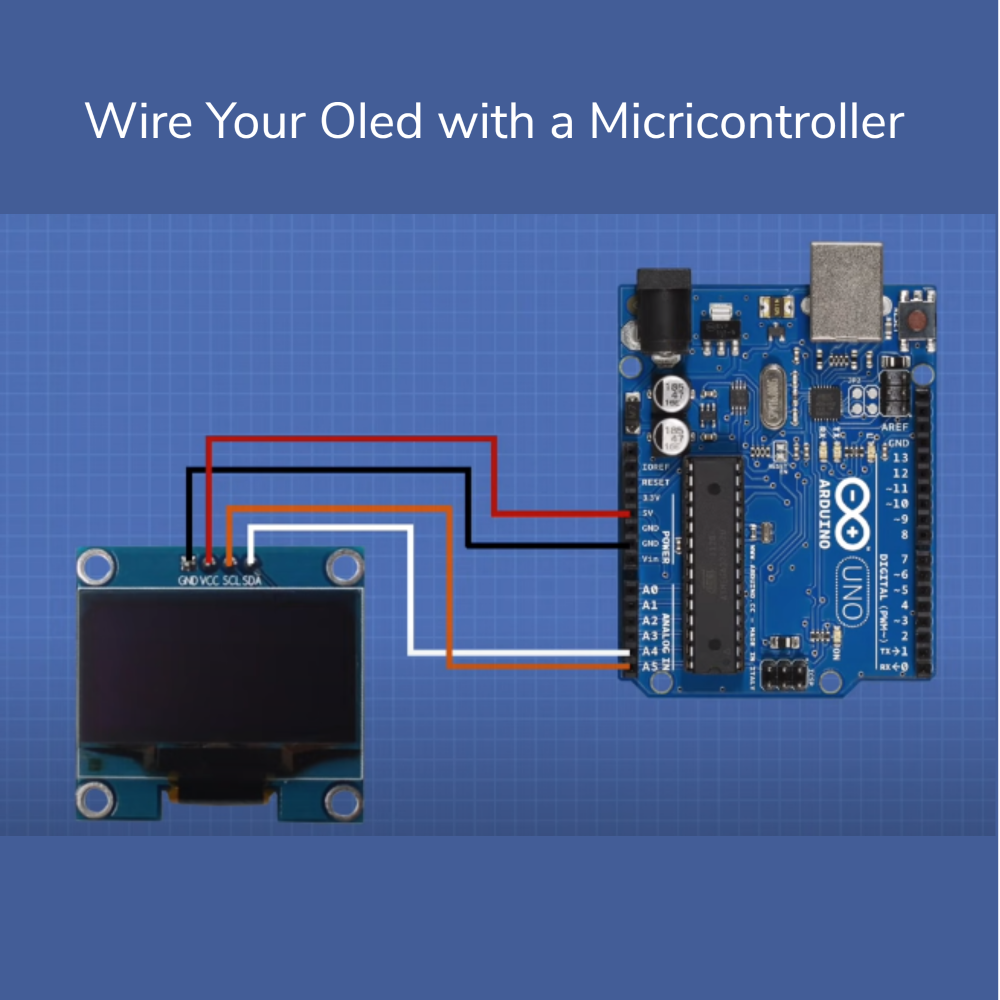

  • Electronic circuit board with Arduino microcontroller and LED on a blue background
  • Small display module with connectors on a blue background
  • Smart OLED display module with text indicating a switch to smart OLED display.

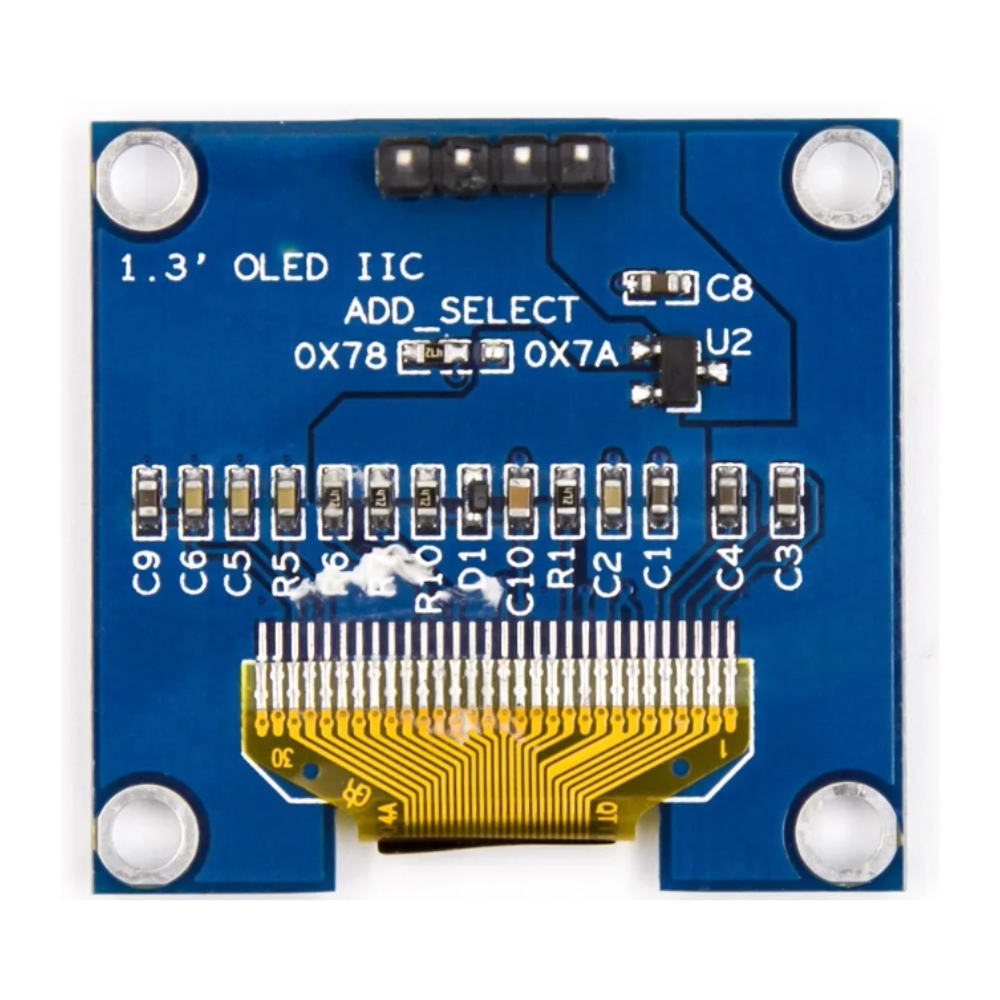

  • OLED display module with labeled pins and dimensions on a white background

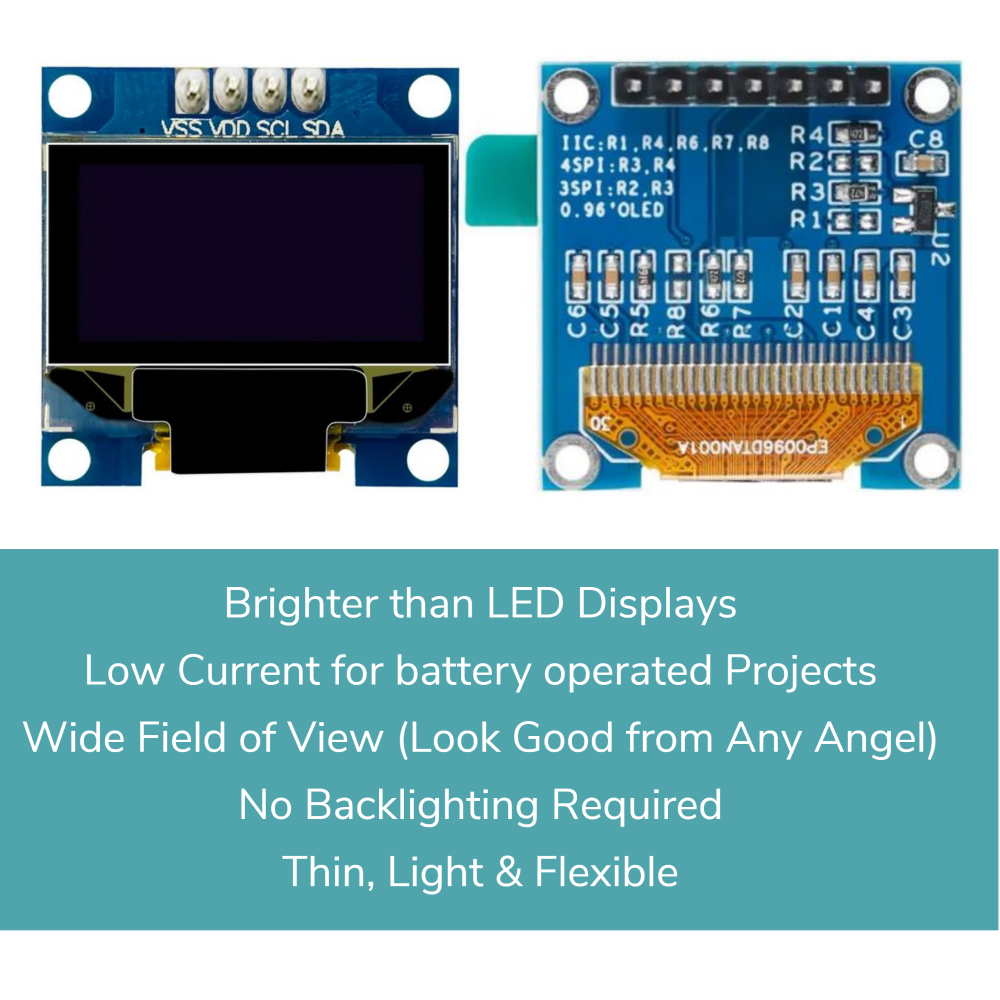

  • OLED display module with text highlighting its features on a white background
1 9

Maisonup

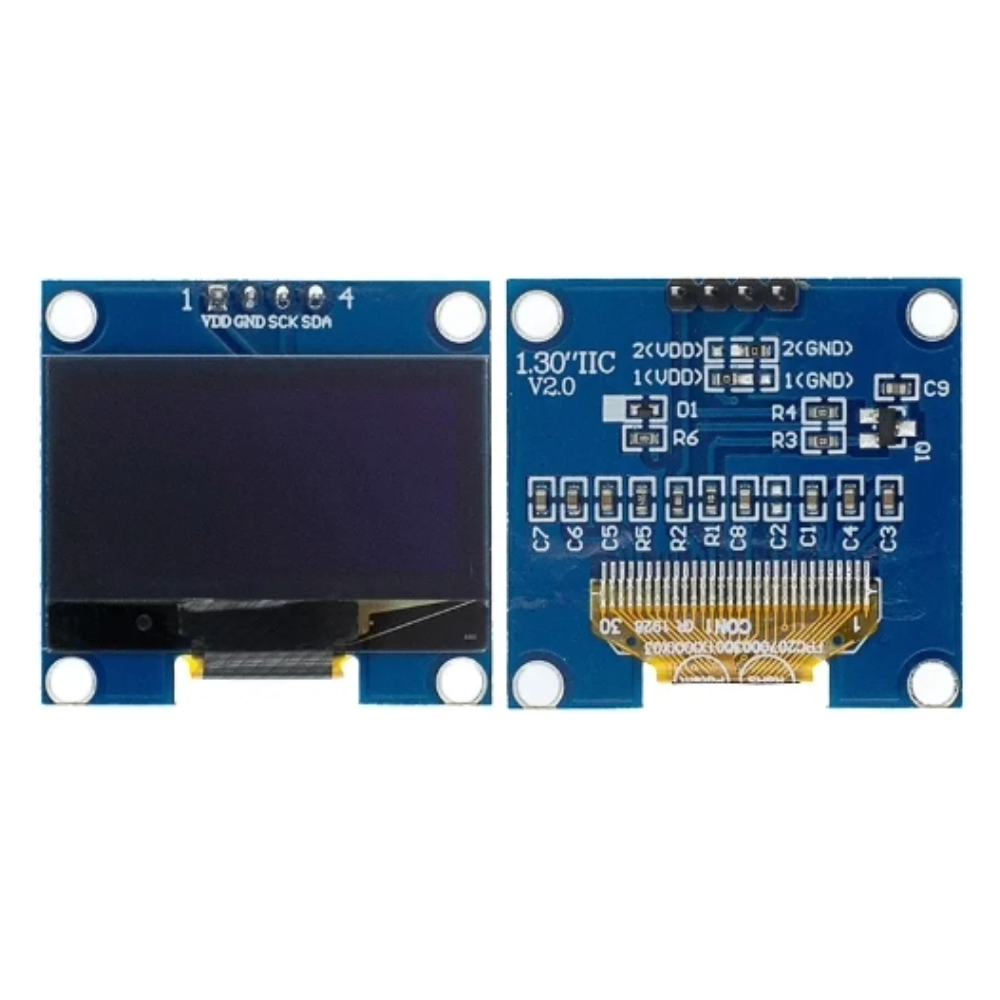

1.3" I2C/IIC OLED Display Module (Blue, 128×64)

1.3" I2C/IIC OLED Display Module (Blue, 128×64)

Rs. 285.56
Rs. 428.00 Rs. 285.56
Sale Sold out
Shipping calculated at checkout.

1.3" I2C OLED Display Module (Blue, 128×64) provides a larger, high-contrast screen with low power consumption and simple 4-pin I2C connectivity. Ideal for Arduino, ESP32, ESP8266, and Raspberry Pi projects requiring better visibility.
View full details

1.3" I2C/IIC OLED Display Module (Blue, 128×64) offers a larger viewing area with sharp contrast and vivid blue pixels, making it ideal for projects that need better readability without increasing wiring complexity. Powered by OLED technology, it delivers crisp text and graphics with wide viewing angles and no backlight requirement.

The 4-pin I2C interface keeps connections simple while the bigger 1.3-inch screen makes menus, sensor data, and dashboards easier to read. Fully compatible with Arduino, ESP8266, ESP32, and Raspberry Pi, this display is perfect for IoT devices, control panels, meters, and advanced DIY electronics projects.

🟧 Key Features

  • 1.3-inch OLED display with bright blue pixels
  • 128×64 dot matrix resolution for clear text and graphics
  • Larger display area compared to 0.96" OLED modules
  • I2C / IIC interface for simple wiring and communication
  • 4-pin configuration (VCC, GND, SDA, SCL)
  • High contrast with wide viewing angle
  • No backlight required – true OLED technology
  • Low power consumption, suitable for battery-powered projects
  • Compatible with Arduino, ESP8266, ESP32, and Raspberry Pi
  • Supports popular libraries like Adafruit SSD1306 and U8g2

🟧 Technical Specifications

  • Display Size: 1.3 inch
  • Resolution: 128 × 64 pixels
  • Display Color: Blue
  • Interface: I2C / IIC
  • Pin Configuration: VCC, GND, SDA, SCL
  • Driver IC: SSD1306 / SH1106 (module-dependent)
  • Operating Voltage: 3.3V – 5V
  • Viewing Angle: Wide
  • Technology: OLED (Self-emissive)

🟧 Package Includes

  • 1 × 1.3" I2C/IIC OLED Display Module (Blue, 128×64)

🟧 Ideal For

  • Arduino and ESP-based projects
  • IoT dashboards and monitoring panels
  • Larger text and menu-based interfaces
  • Robotics and automation projects
  • Portable and battery-powered devices
  • Learning embedded systems and display interfacing
  • DIY electronics and prototyping
