ESP-12E ESP8266 WiFi Module for IoT Development

ESP-12E ESP8266 WiFi Module for IoT Development

Rs. 116.82
Rs. 175.00 Rs. 116.82
Sale Sold out
Shipping calculated at checkout.

ESP-12E ESP8266 Wi-Fi module enables powerful IoT and wireless projects in a compact form factor. Ideal for custom PCBs, smart devices, and cloud-connected DIY electronics.
View full details

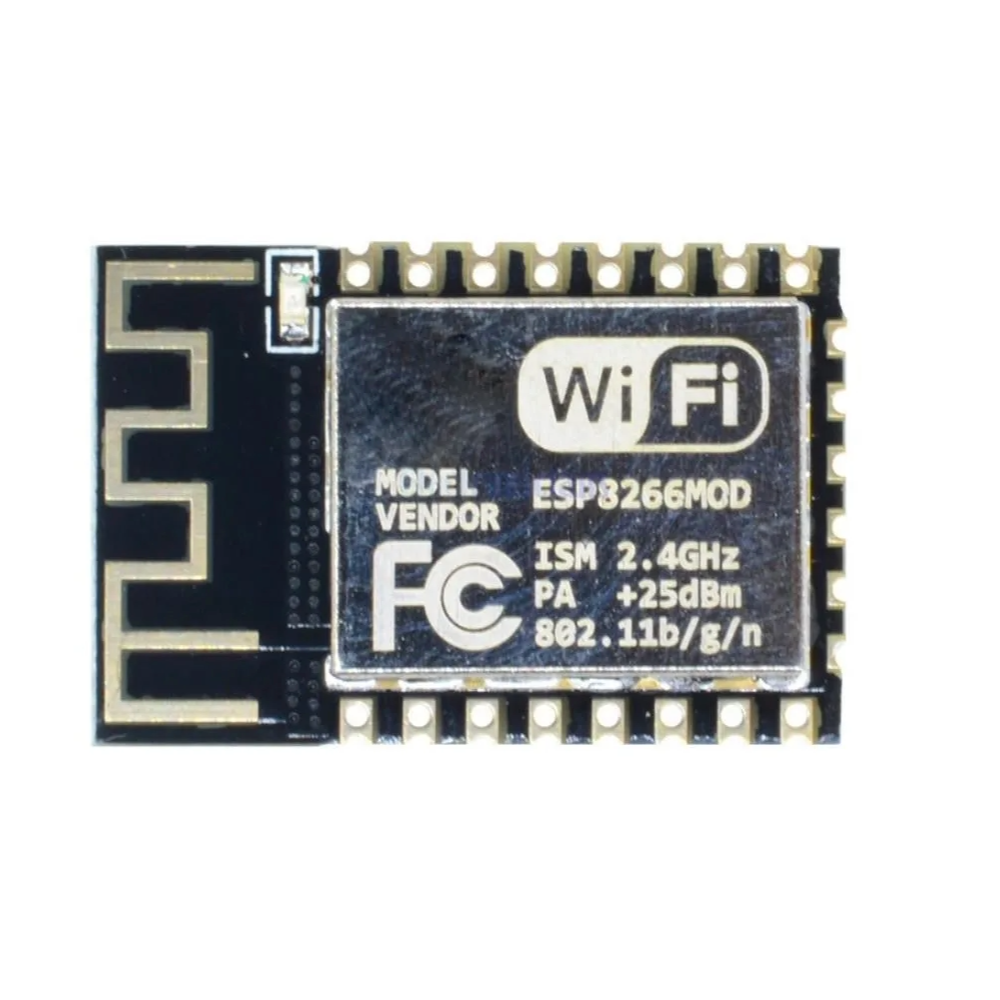

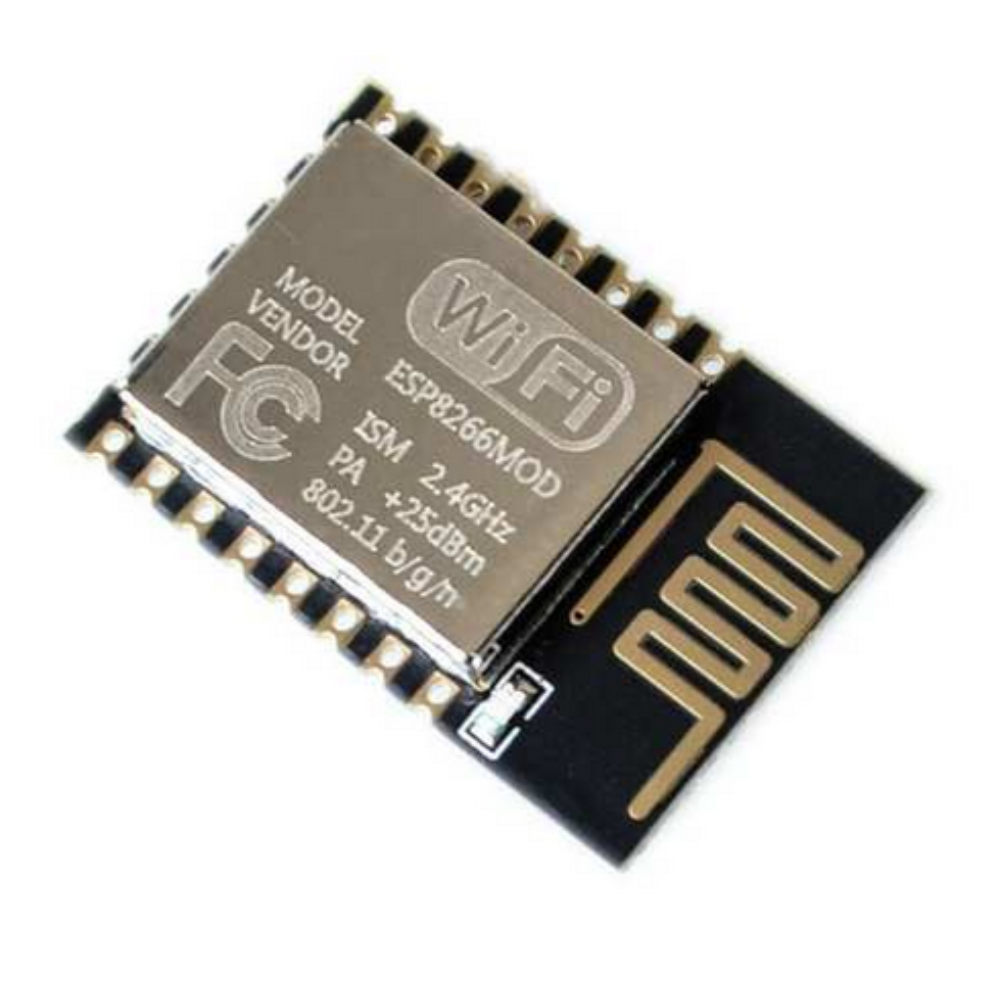

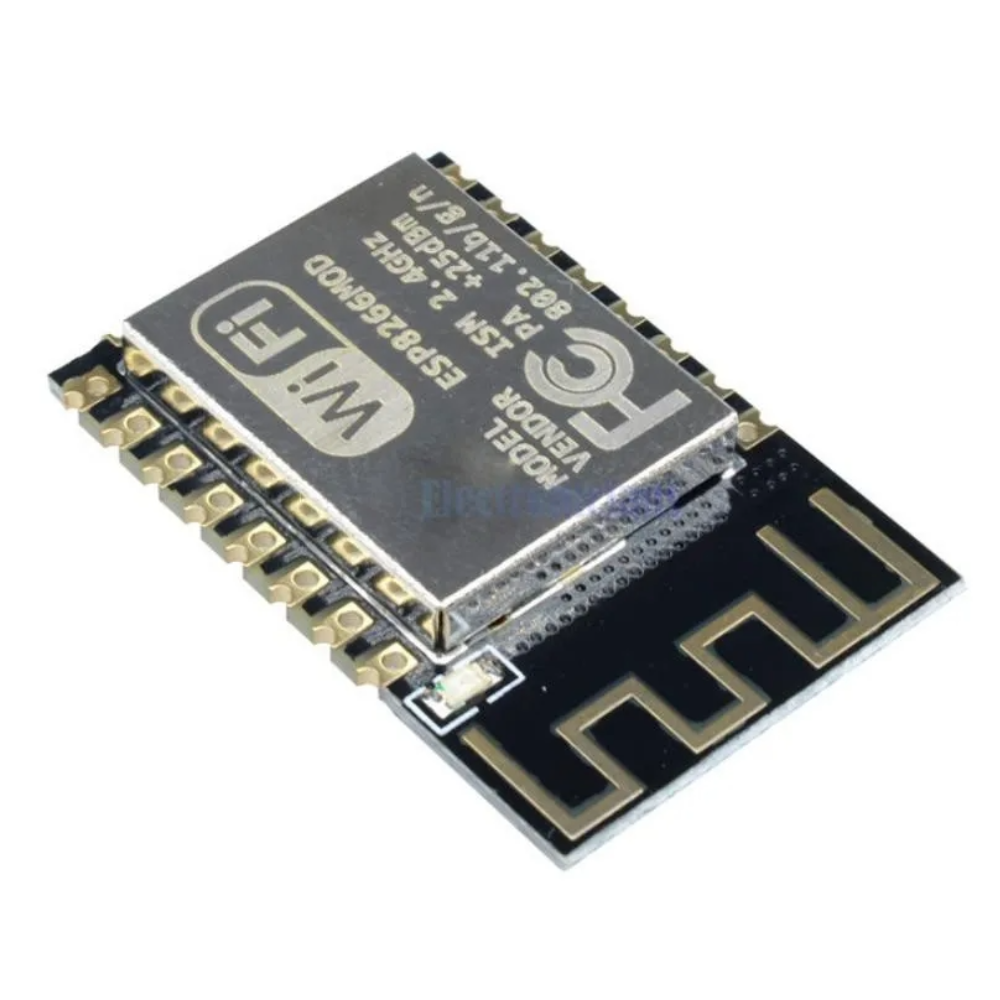

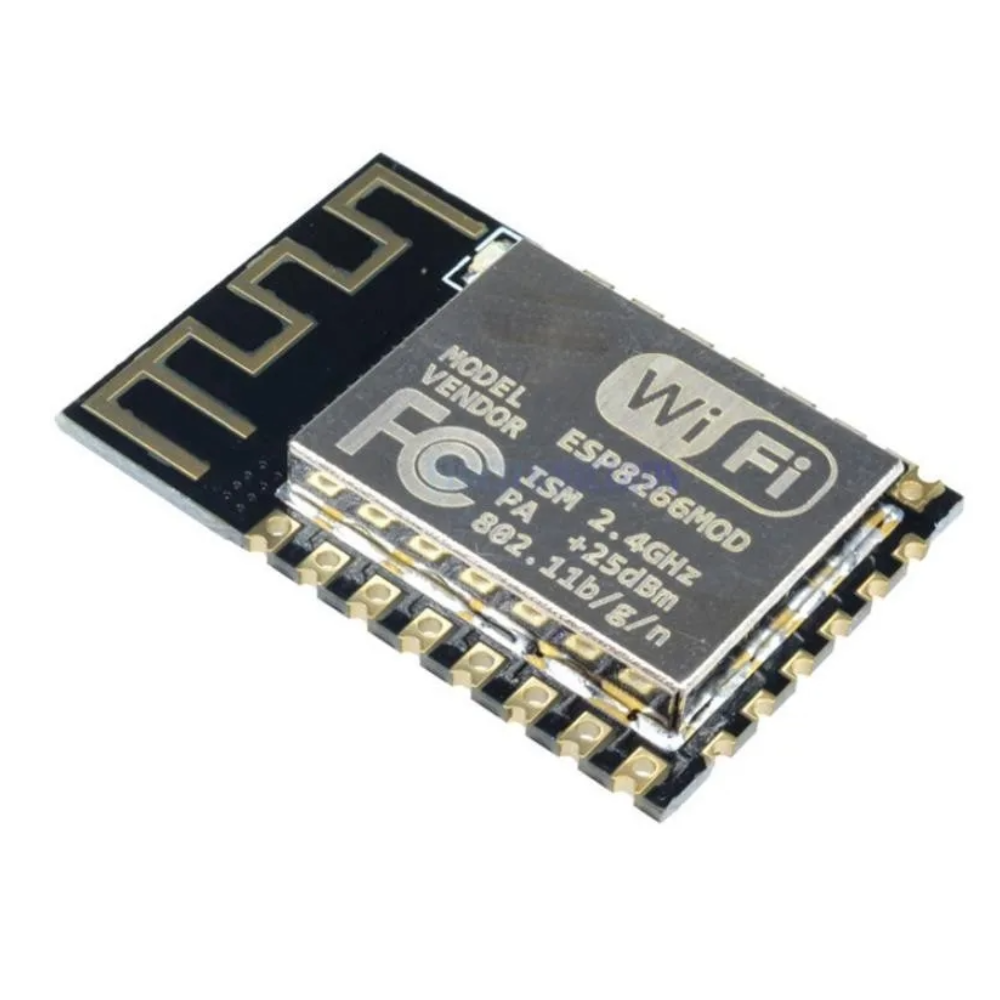

ESP-12E ESP8266 WiFi Module for IoT Development is a powerful and compact Wi-Fi module designed for building connected IoT and wireless automation projects. Based on the ESP8266 SoC, it integrates a microcontroller, TCP/IP stack, and 2.4 GHz Wi-Fi capability into a small, efficient form factor.

The ESP-12E variant features an onboard PCB antenna and expanded GPIO access, making it suitable for custom PCB designs and embedded applications. Widely used by makers and professionals, it supports programming via Arduino IDE, AT commands, or MicroPython.

🟧 Key Features

ESP8266-based Wi-Fi module with integrated MCU

ESP-12E variant with onboard PCB antenna

Built-in TCP/IP stack for Wi-Fi connectivity

Supports station, access point, and mixed modes

Multiple GPIOs for sensors and peripherals

Low power consumption for IoT applications

Suitable for custom PCB integration

🟧 Technical Specifications

Module Type: ESP-12E

Chipset: ESP8266

Wi-Fi Standard: IEEE 802.11 b/g/n (2.4 GHz)

Operating Voltage: 3.3 V

Flash Memory: Typically 4 MB

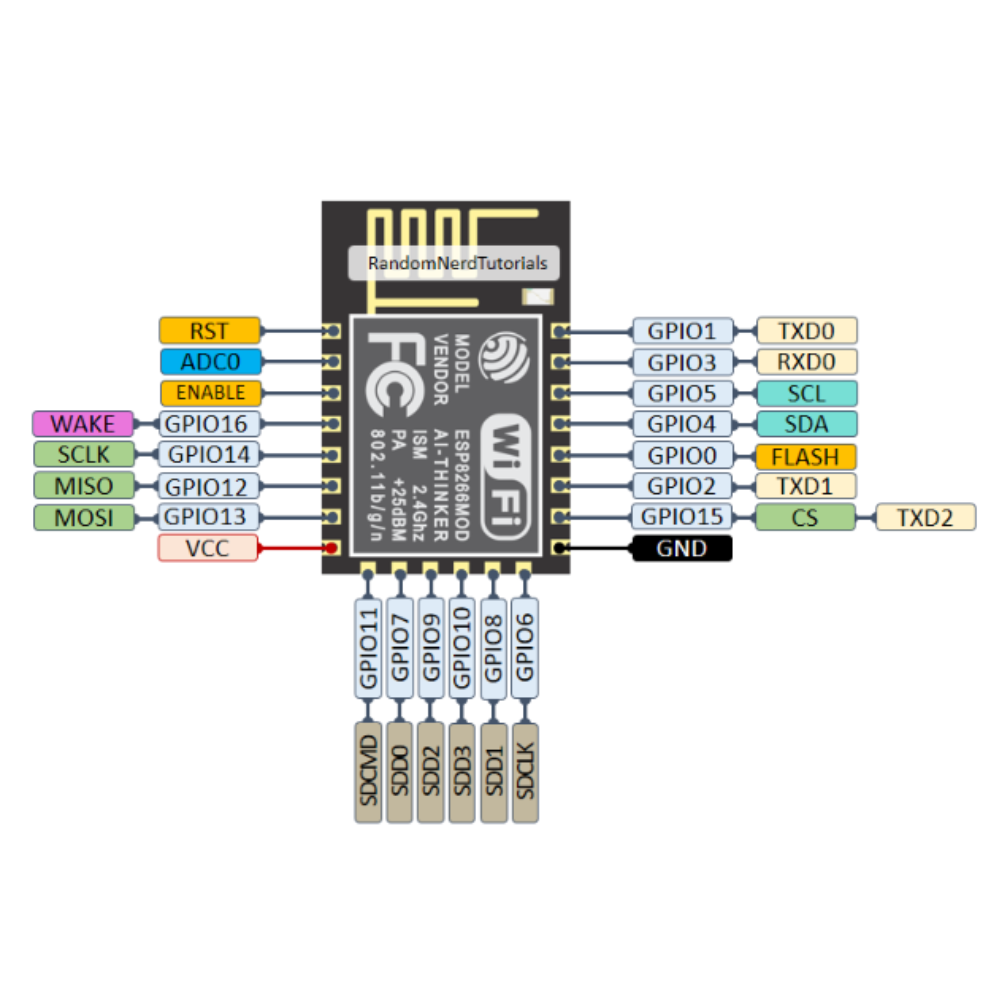

GPIO: Up to 11 usable GPIO pins

Interface: UART, SPI, I2C (via software)

Antenna: Onboard PCB antenna

🟧 Package Includes

1 × ESP-12E ESP8266 Wi-Fi Module

🟧 Ideal For

IoT and smart home projects

Wireless sensor nodes

Custom embedded PCB designs

Arduino-based Wi-Fi applications

Cloud-connected electronics

Learning IoT and networking

🟧 Why Buy From Maisonup?

Quality-checked wireless modules

Reliable performance for DIY and professional use

Fast shipping across India

Maker-friendly support

Trusted by students, hobbyists, and DIY professionals

Add specifications content in the block settings.

90-Days Warranty

This product comes with a 90-Days supplier warranty covering manufacturing defects only, effective from the date of delivery. In case of a verified defect, the faulty part will be replaced after inspection by our technical team. Refunds or replacements of the complete product are not included under this warranty.

Warranty voids if:

The product shows signs of misuse, tampering, soldering, modification, exposure to static discharge, water, chemicals, or fire damage.

Find all related resources here — datasheets, manuals, drivers, and other product-specific documents. If you need anything else or require technical assistance, feel free to reach out through our Contact Us page.

No attachments available for this product yet.
