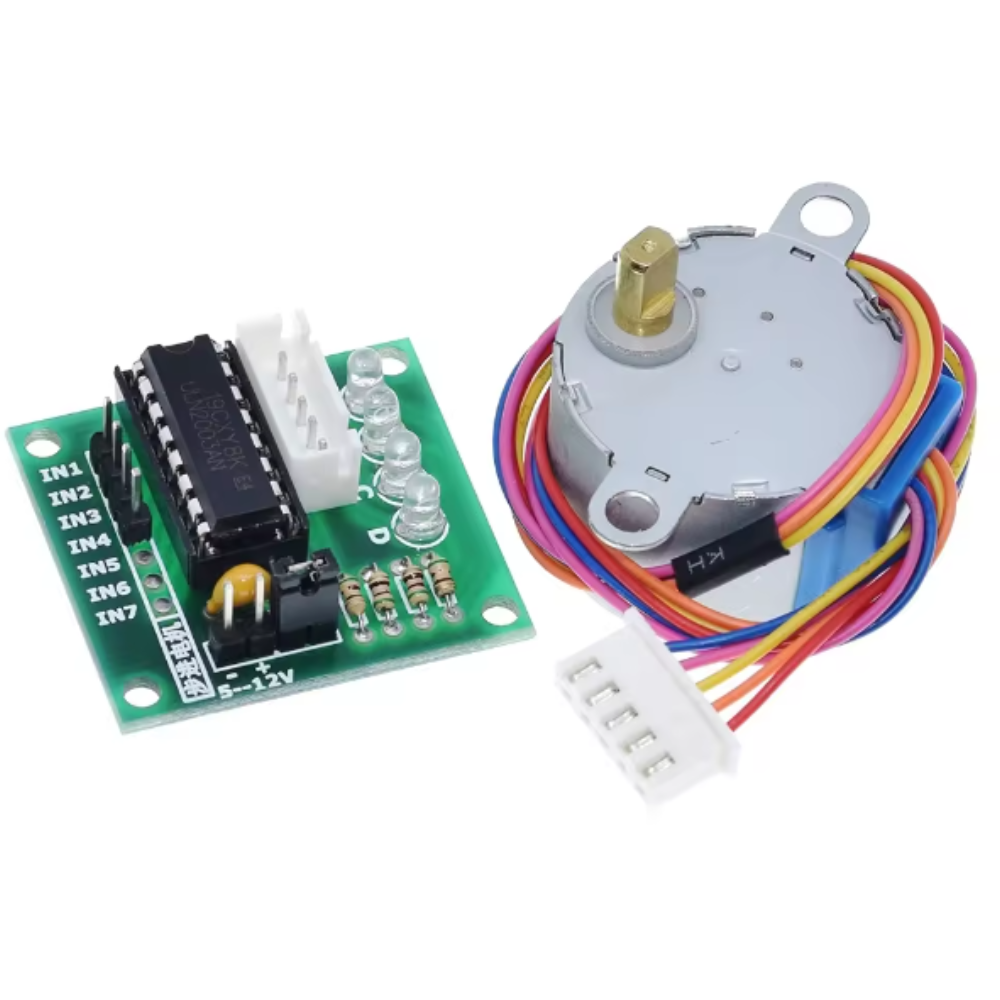

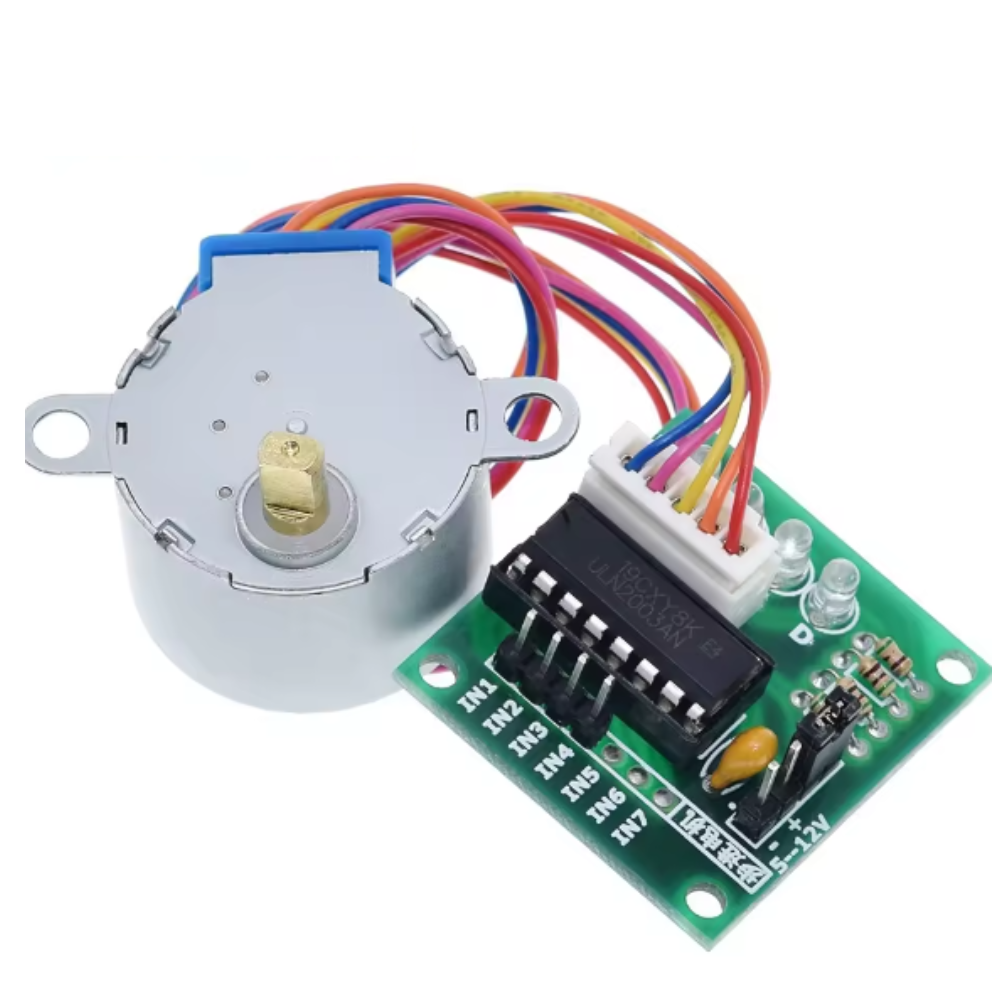

28BYJ-48 5V Stepper Motor with ULN2003 Driver Board

28BYJ-48 5V Stepper Motor with ULN2003 Driver Board

Rs. 139.00
Rs. 199.00 Rs. 139.00
Sale Sold out
Shipping calculated at checkout.

The 28BYJ-48 5V Stepper Motor with ULN2003 Driver Board is a reliable, low-speed geared stepper motor perfect for precision movement projects. With the included ULN2003 driver, it connects easily to Arduino, ESP32, and Raspberry Pi for robotics, automation, and DIY mechanisms.

Secure checkout • Quality checked • Safe packaging for delivery

View full details

The 28BYJ-48 5V Stepper Motor paired with the ULN2003 driver board is one of the most popular motion-control kits for beginners and makers. Its internal reduction gearbox provides high torque, smooth rotation, and precise step control, making it ideal for small robots, CNC experiments, smart locks, rotating displays, and automation projects.

The included ULN2003 driver board makes interfacing simple — plug it directly into Arduino, ESP8266, ESP32, Raspberry Pi, or any microcontroller. With onboard indicator LEDs and intuitive pin headers, this combo provides a stable and easy-to-use motion solution for a wide range of DIY applications.

🟧 Key Features

  • High-torque geared stepper motor with smooth, precise movement
  • Compatible 5V operating voltage — safe for microcontroller use
  • ULN2003 driver board included for easy control
  • Onboard LEDs to show coil activation
  • Simple 4-pin interface with Arduino & ESP boards
  • Reduction gearbox for high precision & controlled speed
  • Excellent for automation, robotics, and positioning systems

🟧 Technical Specifications

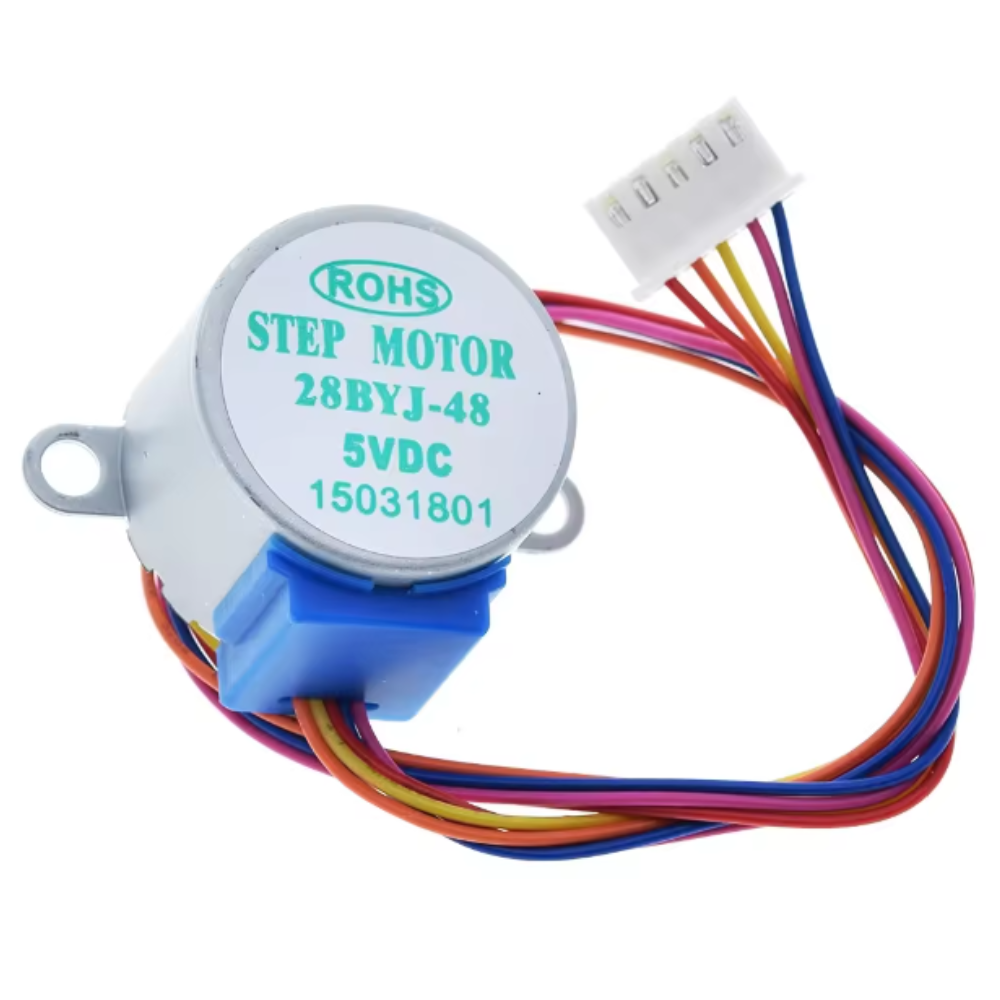

Stepper Motor (28BYJ-48)

  • Operating Voltage: 5V DC
  • Step Angle: Approx. 5.625° / step
  • Gear Ratio: ~1:64 reduction (varies slightly by batch)
  • Steps per Revolution (after gearbox): ~4096 steps (approx.)
  • Coil Resistance: ~50 Ω per coil
  • Shaft Type: Plastic, single output
  • Connector: 5-pin JST

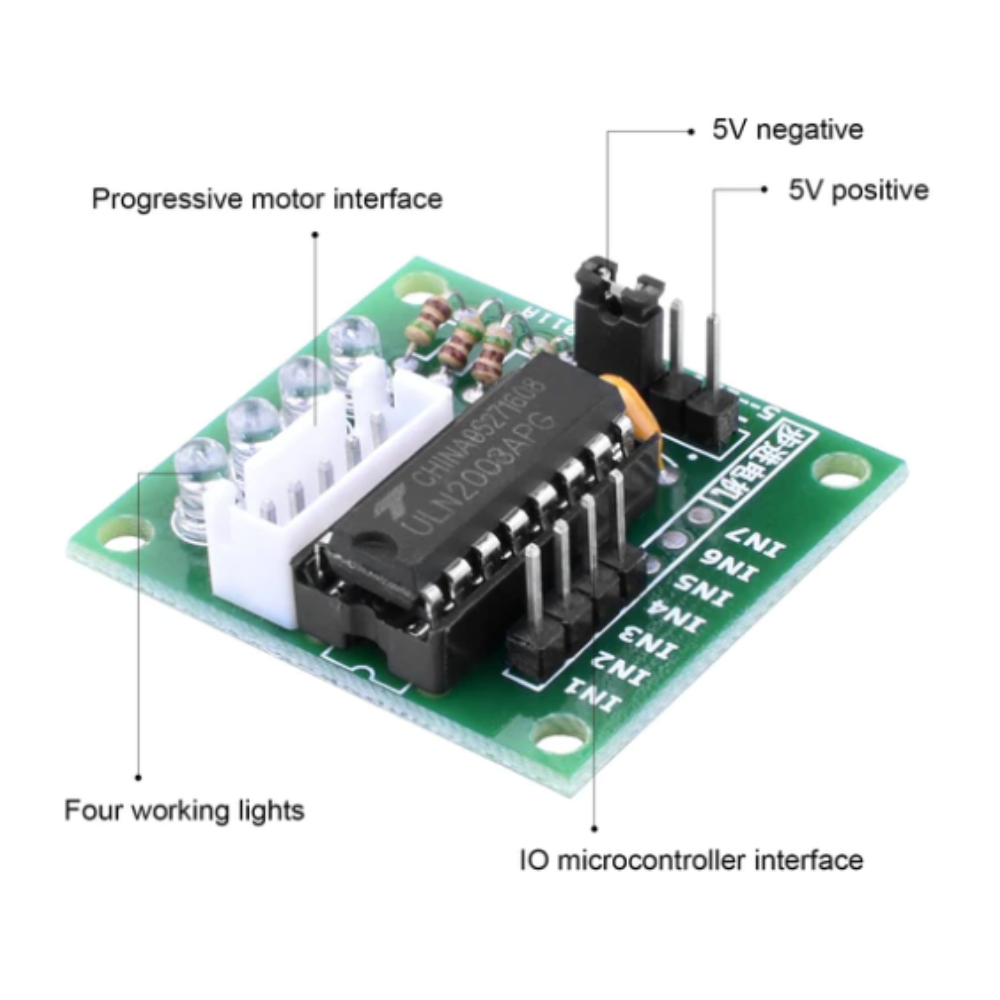

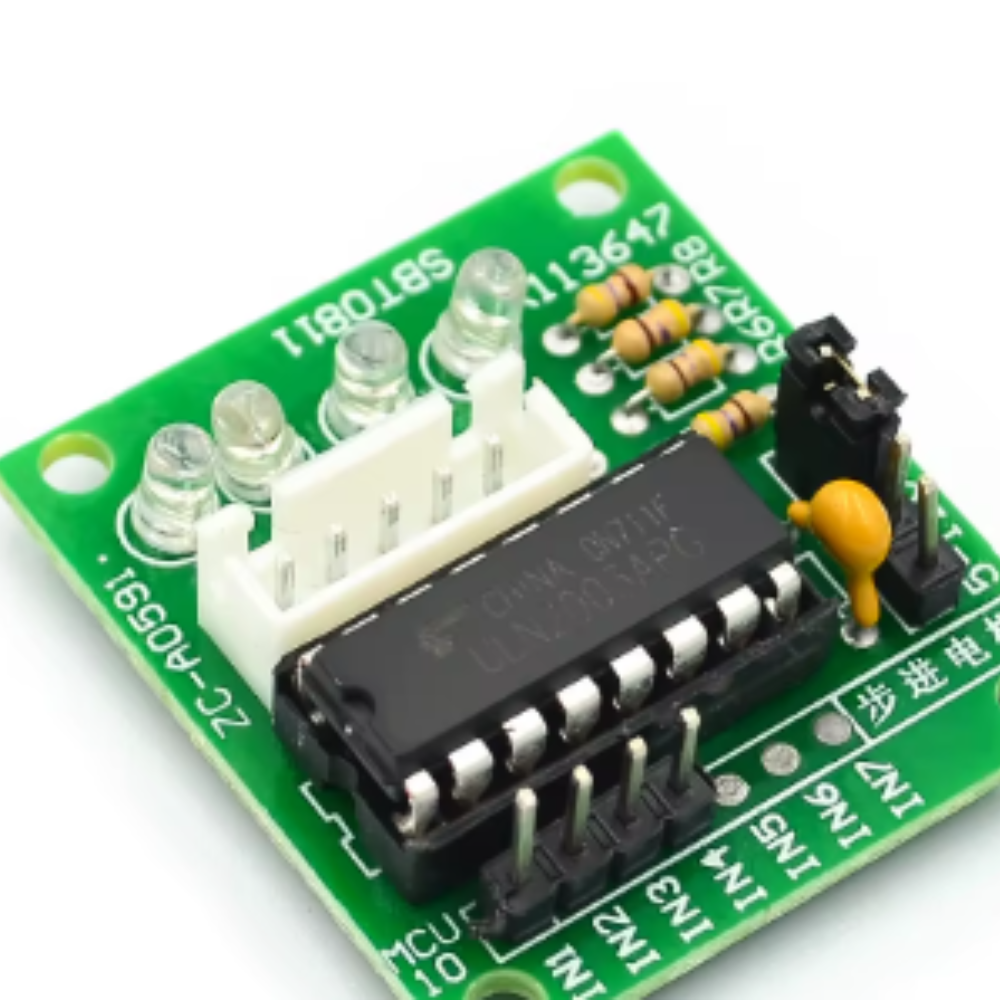

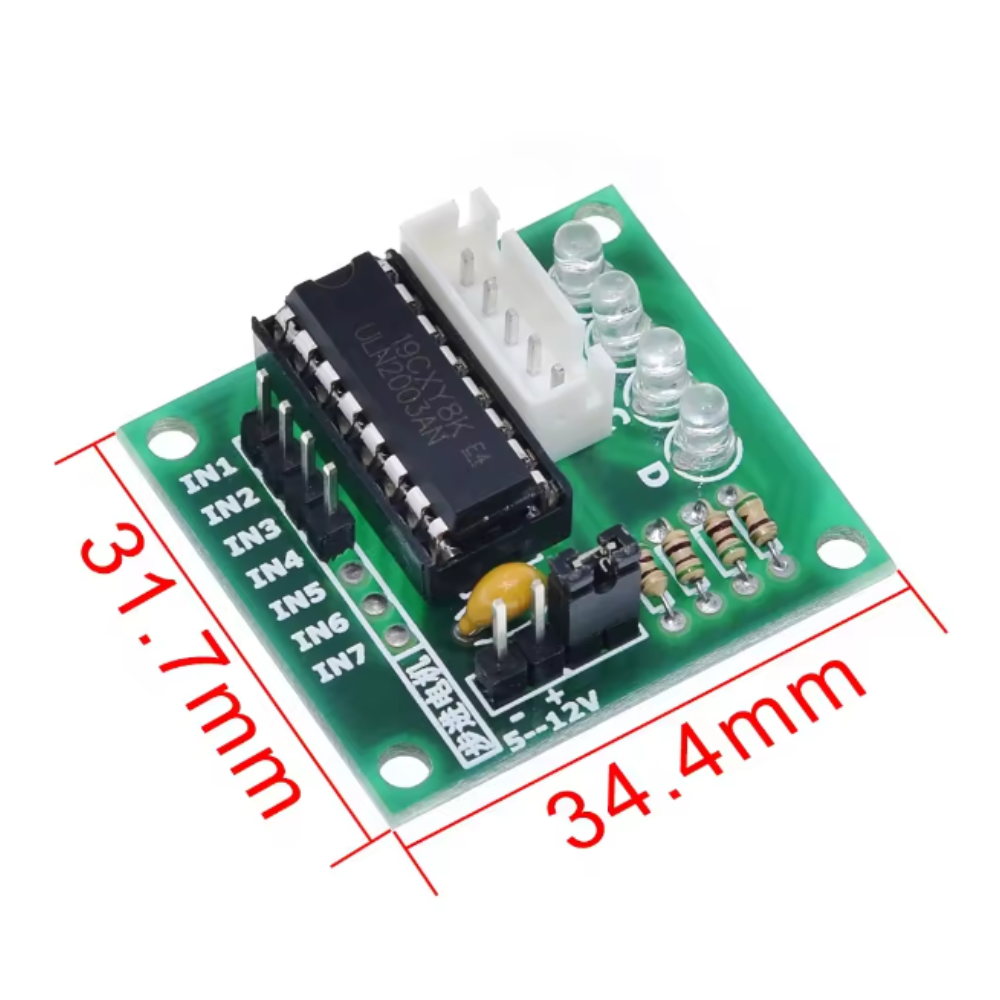

ULN2003 Driver Board

  • Driver IC: ULN2003A Darlington array
  • Input Voltage: 5V
  • Indicators: 4 × coil-status LEDs
  • Control Pins: IN1, IN2, IN3, IN4
  • Motor Output: 5-pin socket for 28BYJ-48
  • Mounting: 4-hole PCB

🟧 Package Includes

  • 1 × 28BYJ-48 5V Stepper Motor
  • 1 × ULN2003 Driver Board

🟧 Ideal For

  • Robotics & automation projects
  • Pan-tilt camera mount
  • CNC mini projects
  • Smart locks & access systems
  • Rotating displays, dials, meters
  • Timed rotation systems
  • College & school engineering experiments

🟧 Why Buy From Maisonup?

  • Pre-tested modules and motors
  • Fast shipping across India
  • Maker-friendly support
  • Trusted by DIYers, students, and engineers

90-Days Warranty

This product comes with a 90-Days supplier warranty covering manufacturing defects only, effective from the date of delivery. In case of a verified defect, the faulty part will be replaced after inspection by our technical team. Refunds or replacements of the complete product are not included under this warranty.

Warranty voids if:

The product shows signs of misuse, tampering, soldering, modification, exposure to static discharge, water, chemicals, or fire damage.

Find all related resources here — datasheets, manuals, drivers, and other product-specific documents. If you need anything else or require technical assistance, feel free to reach out through our Contact Us page.

No attachments available for this product yet.
