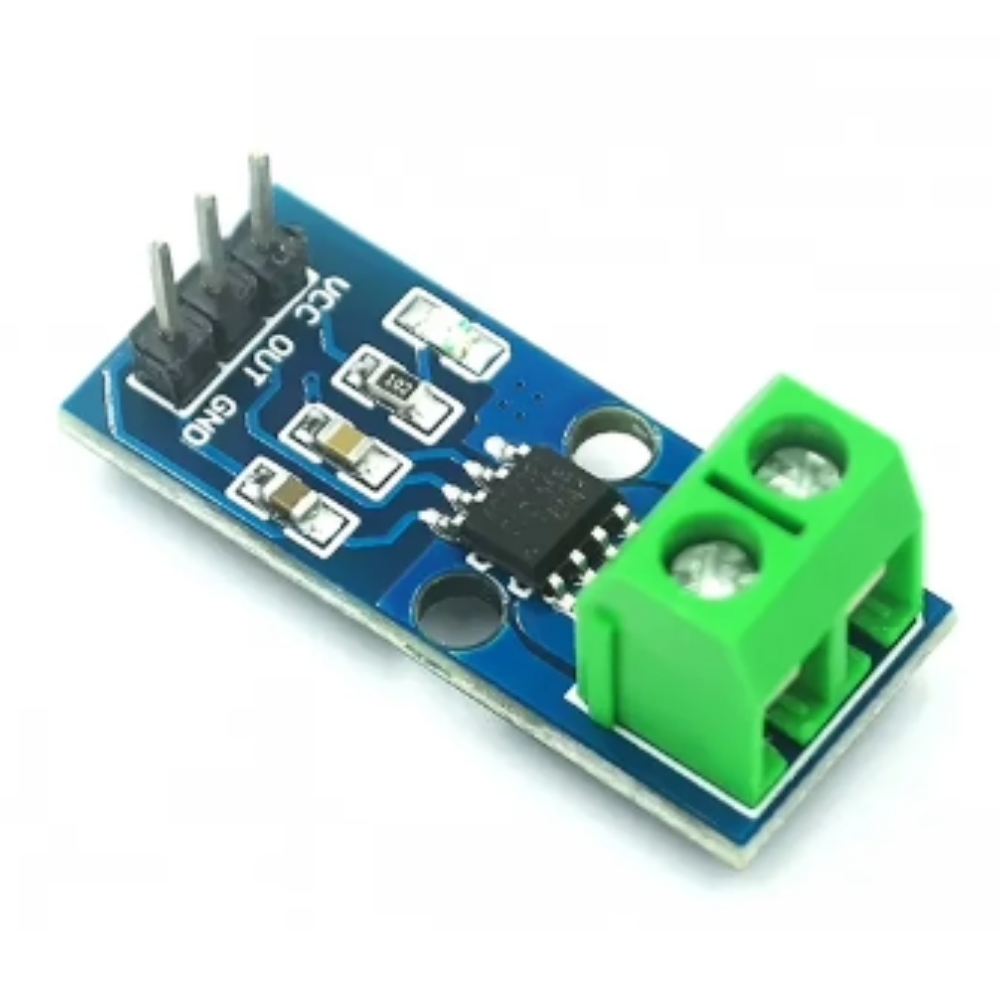

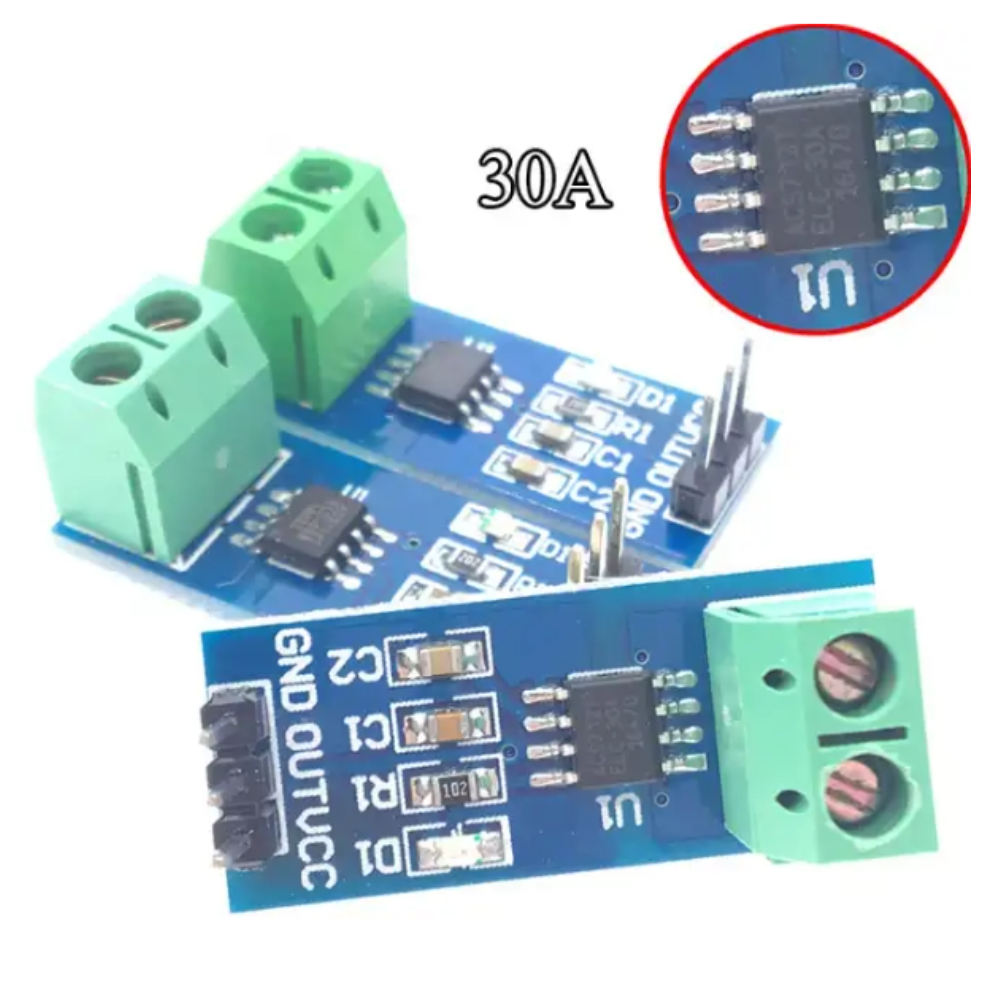

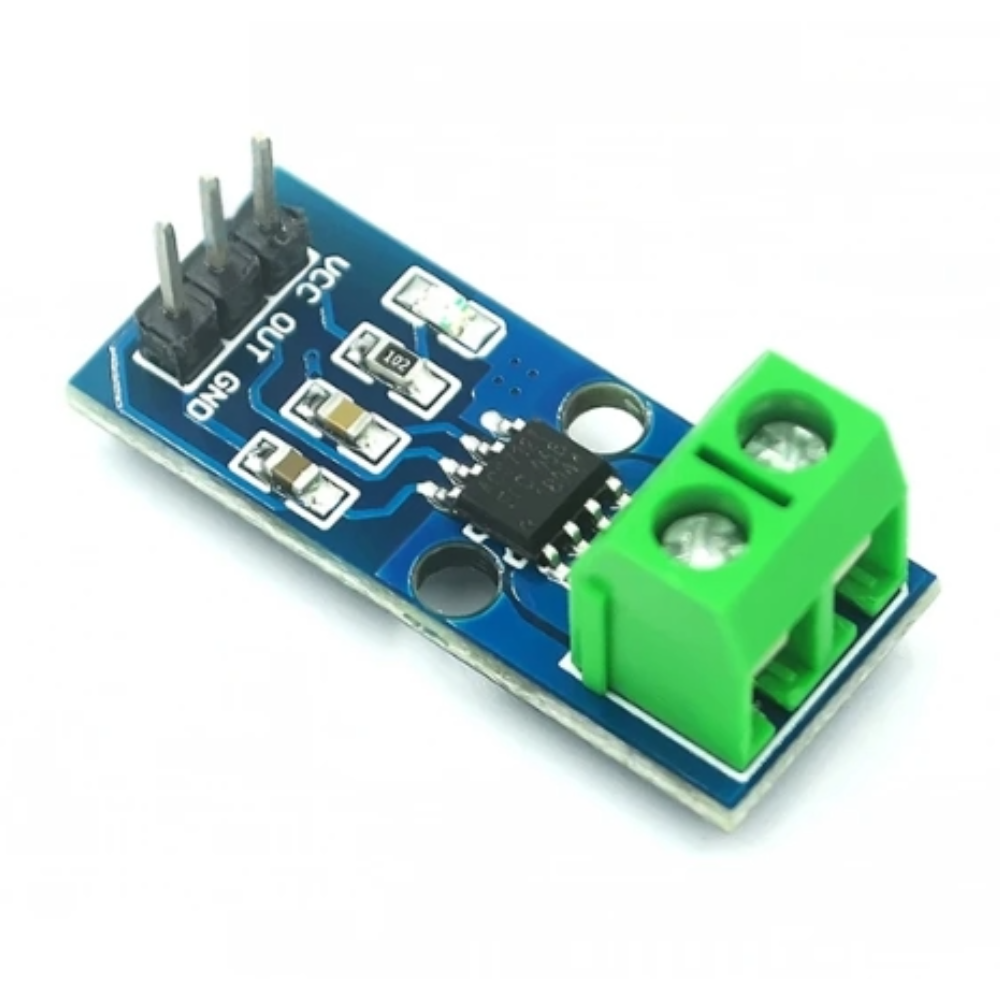

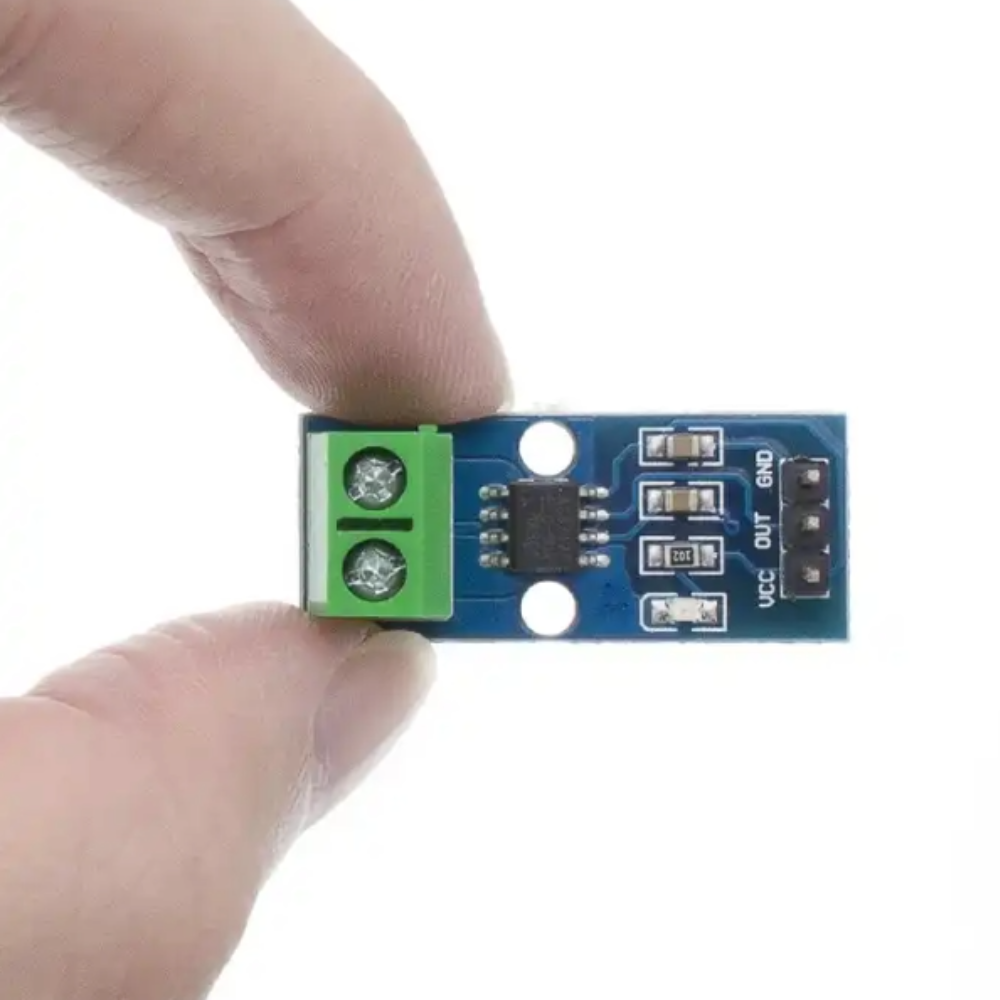

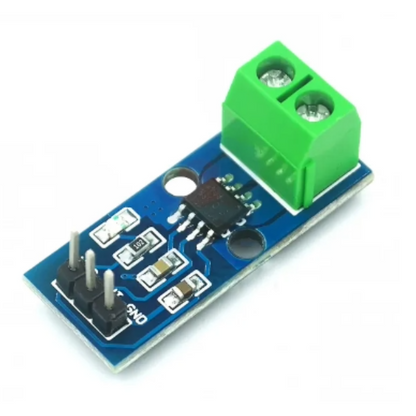

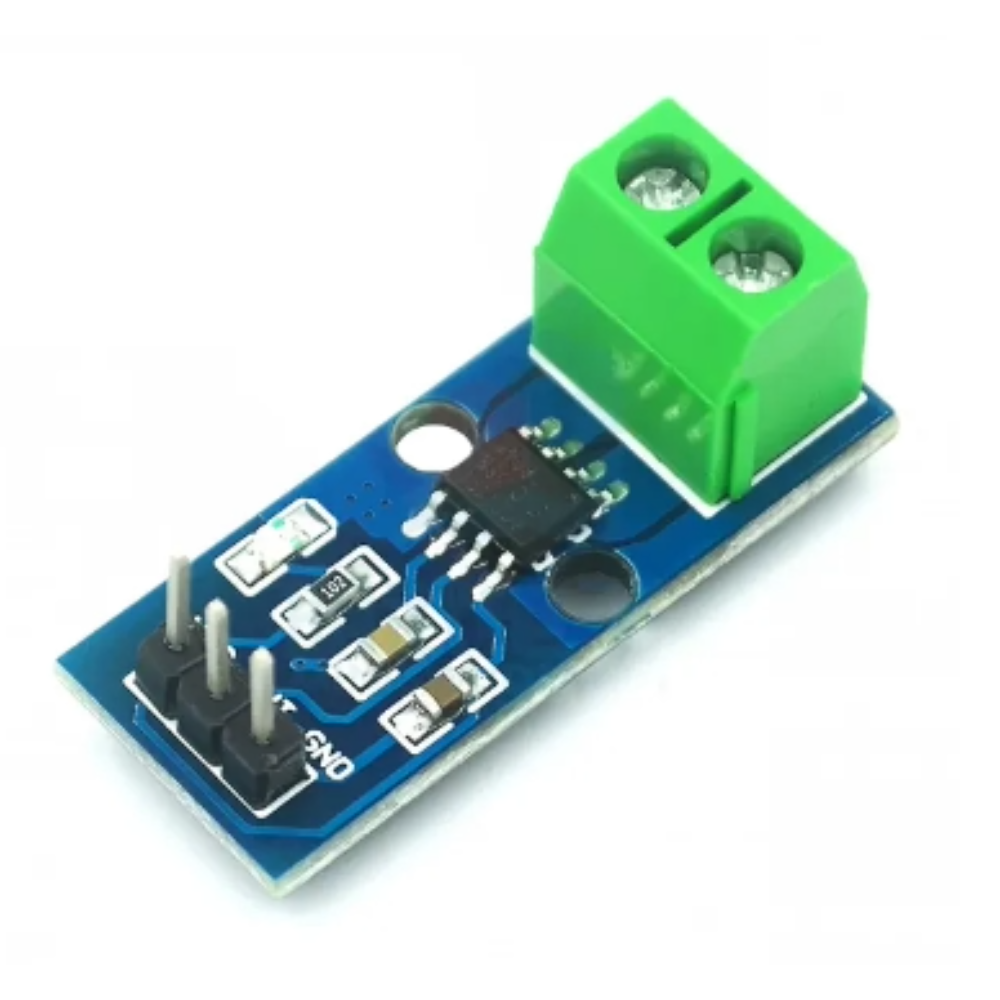

ACS712 30A Hall Effect Current Sensor Module

ACS712 30A Hall Effect Current Sensor Module

Rs. 109.00
Rs. 164.00 Rs. 109.00
Sale Sold out
Shipping calculated at checkout.

ACS712 30A Hall effect current sensor module enables safe measurement of higher AC and DC currents with electrical isolation. Ideal for Arduino, ESP, and DIY power monitoring projects.
View full details

ACS712 30A Hall Effect Current Sensor Module is a robust current sensing solution designed to measure AC or DC current up to ±30A using Hall effect technology. It offers electrical isolation between the high-current path and low-voltage control circuitry, ensuring safe and accurate measurements in microcontroller projects.

The module provides an analog voltage output proportional to the sensed current, making it easy to interface with Arduino, ESP8266, ESP32, and other controllers. It’s widely used in power monitoring, motor control, and energy measurement applications.

🟧 Key Features

  • Measures AC and DC current up to ±30A
  • Hall effect sensing with electrical isolation
  • Analog voltage output proportional to current
  • Stable and reliable performance
  • Easy interfacing with Arduino and microcontrollers
  • Compact, ready-to-use module

🟧 Technical Specifications

  • Sensor IC: ACS712
  • Current Range: ±30A
  • Measurement Type: AC and DC
  • Output Type: Analog
  • Sensitivity: ~66 mV/A (30A variant)
  • Operating Voltage: 5V DC
  • Interface: Analog OUT
  • Application: Current measurement and monitoring

🟧 Package Includes

  • 1 × ACS712 30A Hall Effect Current Sensor Module

🟧 Ideal For

  • Current and power monitoring projects
  • Motor current measurement
  • Arduino and ESP-based energy monitoring
  • Overcurrent detection systems
  • DIY electronics and prototyping
  • Educational labs and learning electronics

🟧 Why Buy From Maisonup?

  • Quality-checked sensor modules
  • Reliable performance for DIY and professional use
  • Fast shipping across India
  • Maker-friendly support
  • Trusted by students, hobbyists, and DIY professionals
Add specifications content in the block settings.

90-Days Warranty

This product comes with a 90-Days supplier warranty covering manufacturing defects only, effective from the date of delivery. In case of a verified defect, the faulty part will be replaced after inspection by our technical team. Refunds or replacements of the complete product are not included under this warranty.

Warranty voids if:

The product shows signs of misuse, tampering, soldering, modification, exposure to static discharge, water, chemicals, or fire damage.
