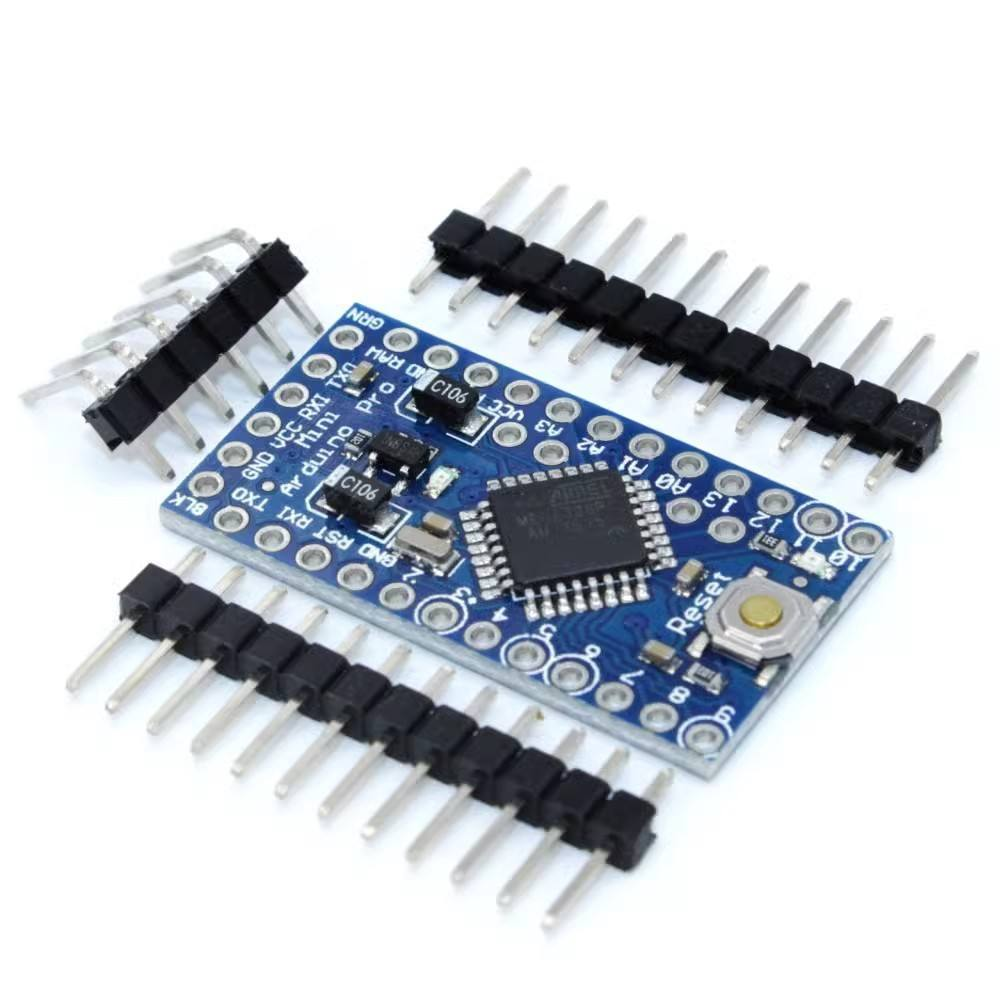

• Arduino Pro Mini Electronic circuit board with components on a white background

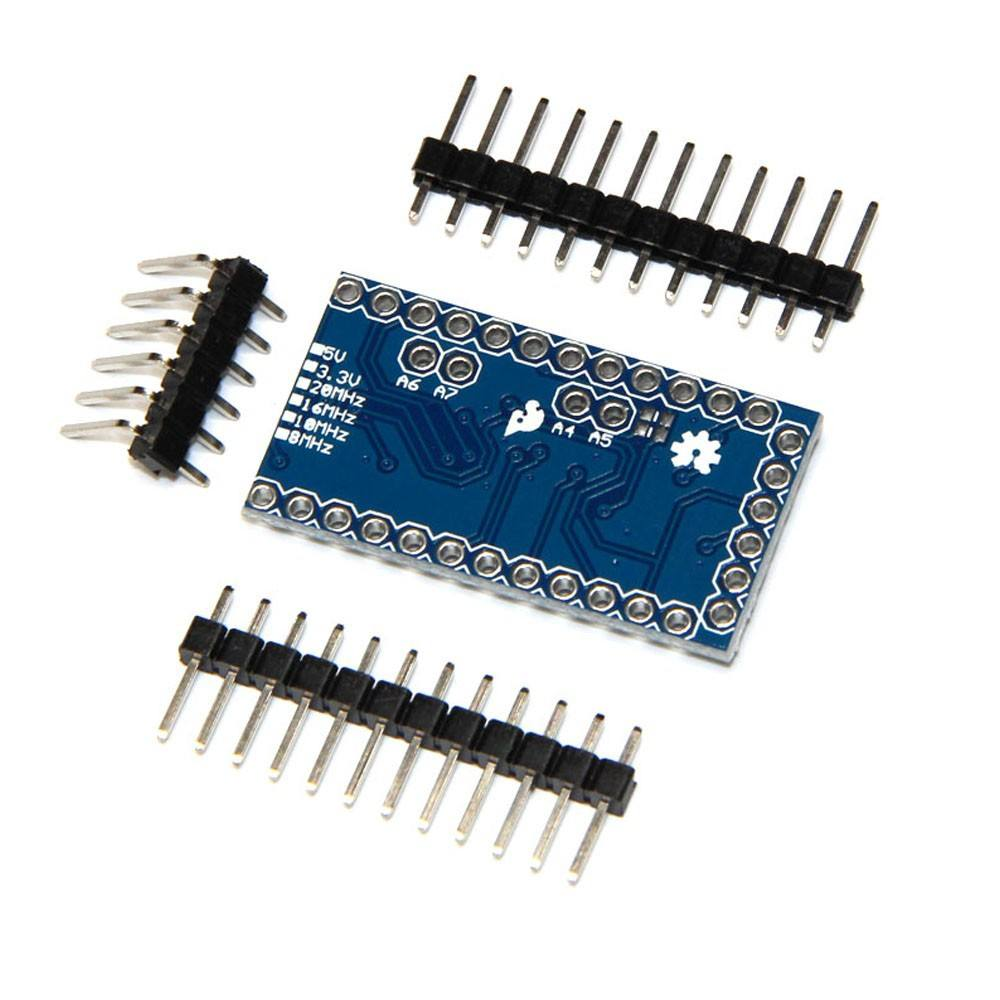

  • Arduino Pro Mini Blue electronic circuit board with header pins on a white background

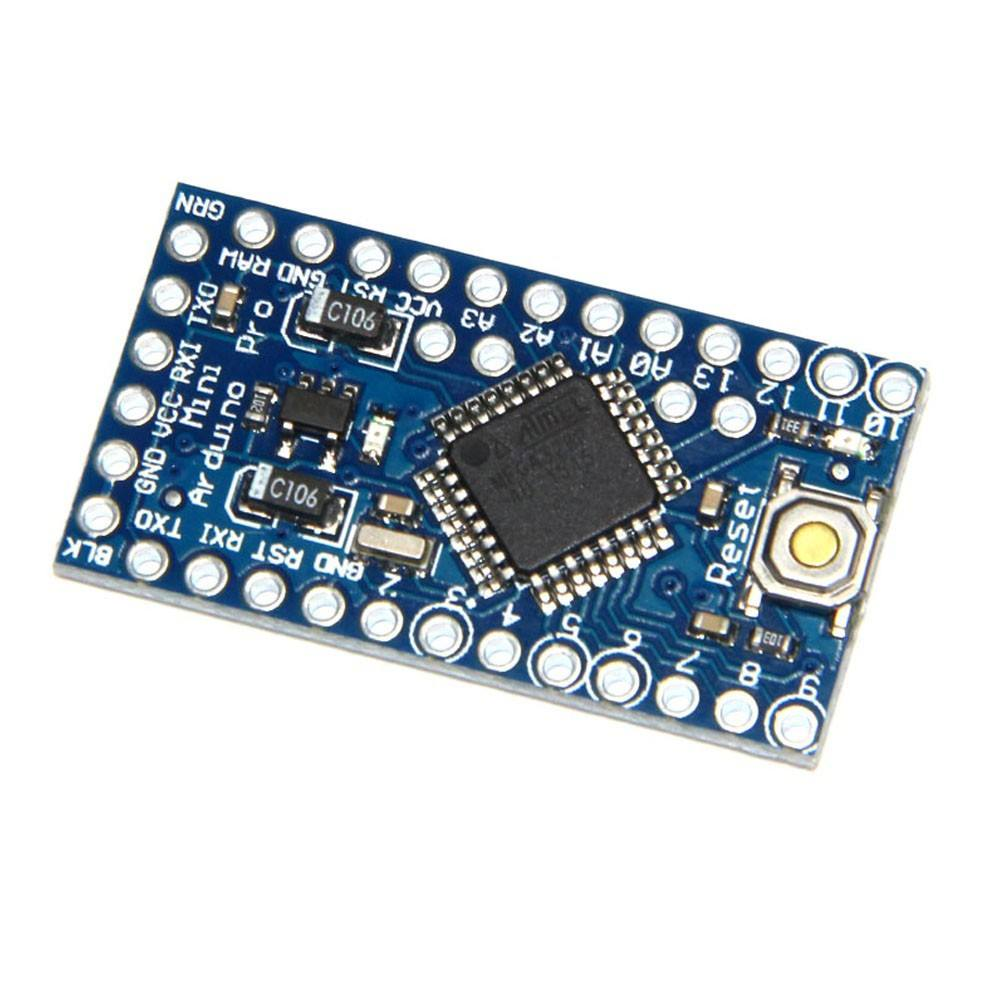

  • Arduino Pro Mini Electronic circuit board with components on a white background

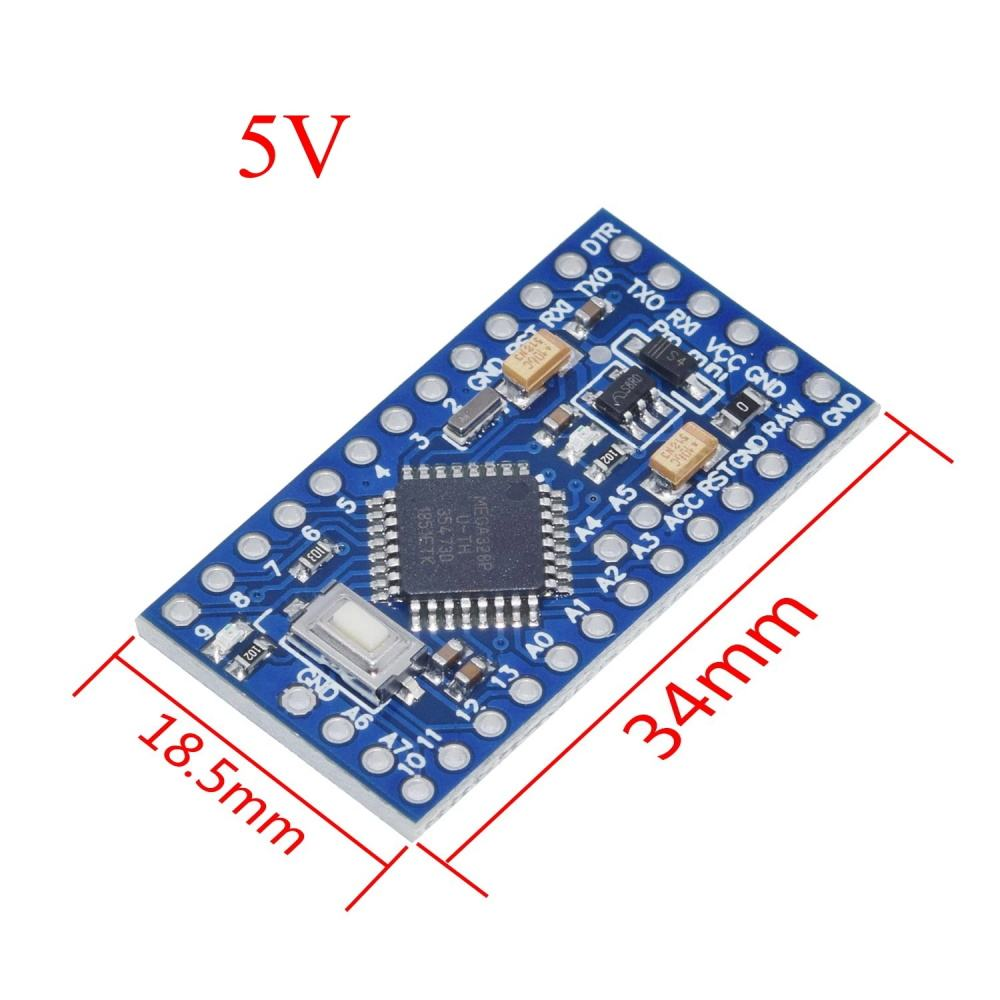

  • Arduino Pro Mini Blue electronic circuit board with dimensions labeled on a white background

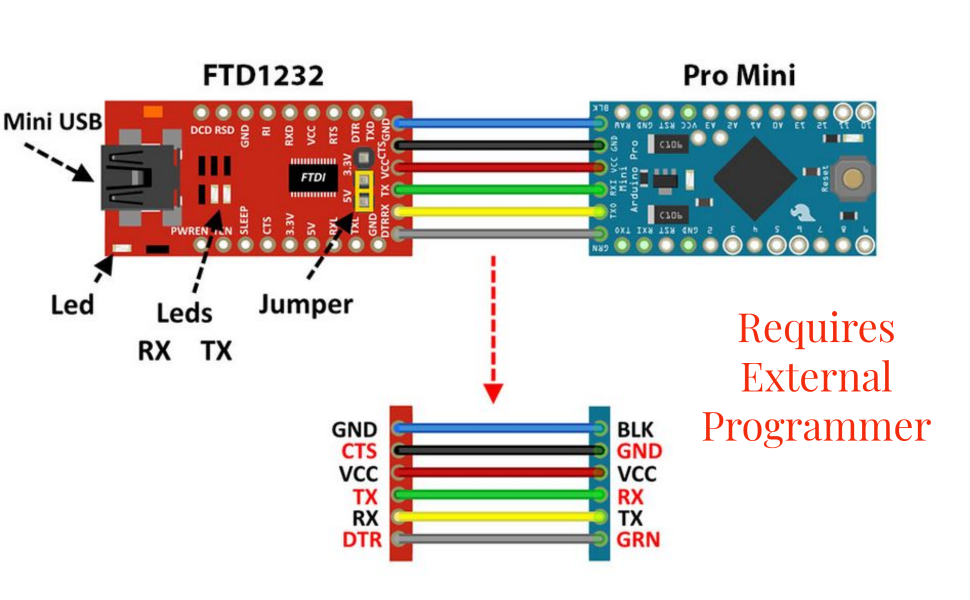

  • Electronic components diagram with FTDI USB to serial adapter and Pro Mini microcontroller.
1 5

Maisonup

Pro Mini ATMEGA328P 5V/16M Blue – Standard Version

Pro Mini ATMEGA328P 5V/16M Blue – Standard Version

Rs. 250.00
Rs. 599.00 Rs. 250.00
Sale Sold out
Shipping calculated at checkout.

Pro Mini ATmega328P 5V/16MHz (Blue) is a compact, breadboard-friendly microcontroller ideal for embedded and low-space DIY projects. It delivers the same performance as the Arduino Uno in a much smaller footprint, making it perfect for wearable, portable, and custom electronics. The 5V/16MHz version ensures full compatibility with most sensors, modules, and Arduino libraries.

Secure checkout • Quality checked • Safe packaging for delivery

View full details

The Pro Mini ATmega328P 5V/16MHz (Blue – Standard Version) is a ultra-compact, lightweight microcontroller board designed for embedded, battery-powered, and space-constrained DIY projects. Powered by the ATmega328P chip, it delivers the same performance as an Arduino Uno but in a much smaller footprint—perfect for wearables, custom PCBs, drones, robots, sensor nodes, and compact electronics.

🟧 Key Features

  • ATmega328P Microcontroller for stable, widely supported performance
  • Ultra-compact Pro Mini form factor for space-restricted applications
  • 5V / 16MHz Standard Version — compatible with most sensors, modules, and Arduino libraries
  • Breadboard-friendly pin layout for easy prototyping
  • On-board Reset Button & Power/Status LEDs
  • Low-power design suitable for battery-driven projects
  • Full Arduino IDE support (requires external USB-to-TTL adapter like FTDI/CH340)

🟧 Technical Specifications

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Clock Speed: 16 MHz
  • Input Voltage: 5–12V via RAW pin
  • Digital I/O Pins: 14
  • PWM Pins: 6
  • Analog Input Pins: 8
  • Flash Memory: 32 KB (2 KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Communication: UART / SPI / I2C
  • Dimensions: Approx. 18 × 33 mm
  • USB Interface: Not onboard (requires separate USB-TTL programmer)

🟧 Package Includes

  • 1 × Pro Mini ATmega328P Board (5V/16MHz – Blue)
  • Header Pins (if provided)
  • USB-TTL Adapter (include only if you ship it)

🟧 Ideal For

  • Ultra-compact DIY electronics
  • Robotics, drones & automation
  • IoT nodes and low-power sensor projects
  • College/School engineering projects
  • Embedded systems and custom PCB designs

🟧 Why Buy From Maisonup?

  • Pre-tested, reliable components
  • Fast shipping across India
  • Maker-friendly support
  • Trusted by DIYers, students & engineers

90-Days Warranty

This product comes with a 90-Days supplier warranty covering manufacturing defects only, effective from the date of delivery. In case of a verified defect, the faulty part will be replaced after inspection by our technical team. Refunds or replacements of the complete product are not included under this warranty.

Warranty voids if:

The product shows signs of misuse, tampering, soldering, modification, exposure to static discharge, water, chemicals, or fire damage.

Find all related resources here — datasheets, manuals, drivers, and other product-specific documents. If you need anything else or require technical assistance, feel free to reach out through our Contact Us page.

Attachments
CH340_Driver_for_Windows.zip CH340_Driver_for_Mac.zip
